A comparison study of water disposal methods in a gas project—Part 1

A. A. Noaman, Minia University

Produced water refers to water associated with the production of oil and/or natural gas from a well. Produced water may also include water produced from a reservoir or water injected into the wellbore to increase the formation pressure for improved hydrocarbon recovery.1,2 The concentration of constituents and the volume of produced water differ dramatically depending on the type and location of the petroleum product.3–5 Generally, the ratio of oil and produced water is 1:3 for most oil wells.6

Produced water quality varies significantly based on geographical location, type of hydrocarbon produced and the geochemistry of the producing formation. In general, the total dissolved solids concentration can range from 100 mg/l to > 400,000 mg/l. Silt and particulates, sodium, bicarbonate and chloride are the most commonly occurring inorganic constituents in produced water. Benzene, toluene, ethylbenzene and xylene (BTEX) compounds are the most commonly occurring organic contaminants in produced water.7–9 The types of contaminants found in produced water and their concentrations have a large impact on the most appropriate type of beneficial use and the degree and cost of the treatment required.10,11

Many different technologies can be used to treat produced water; however, the types of constituents removed by each technology and the degree of removal must be considered to identify potential treatment technologies for a given application.12–16 For some types of produced water, more than one type of treatment technology may be capable of meeting the contaminant removal target, and a set of selection criteria must be applied to narrow down multiple treatment options.17,18

Large water volumes also can cause environmental impacts through erosion, large land area disposal basins, and pipeline and road infrastructure.19 Water-hauling spills and unplanned discharges are all risks when managing produced water.20 The volume of the receiving body is critical in determining environmental impacts: ocean discharge offers substantive dilution, while small streams offer low dilution capacity.21–23 Globally, +/- 250 MMbbl of water are produced daily from both oil and gas fields, and more than 40% are discharged into the environment.24

The most popular option to handle produced water is to reinject it back into the formation. Produced water reinjection requires minimal or modified treatment before injection to obtain better results, but the injectivity decreases with time. As the reservoir matures, injected produced water swipes through to the producing zone and water production increases with time, which causes abandonment of the well. Transportation of produced water from production to injection sites increases reinjection costs.25–28

The main objectives of this study are: to compare water injection into a formation via a disposal well to maintain reservoir pressure of wells, water discharge into the environment (evaporation ponds), trucking of water from the gas project to the neighbor facilities, and installing 4-in. pipeline from the gas project to the neighbor facilities for produced water disposal of the gas project; to select the best method based on technical factors, capital and operating expenditures; and to comply with environmental regulations


The gas project will include gas wellhead flowlines and main process facilities to achieve the required gas and condensate export specifications.

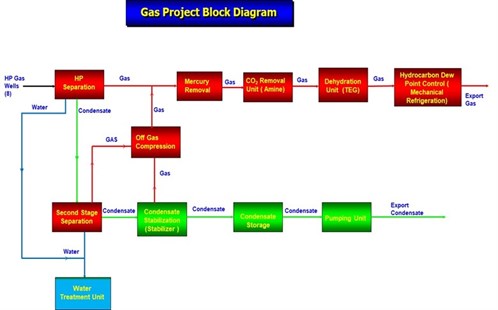

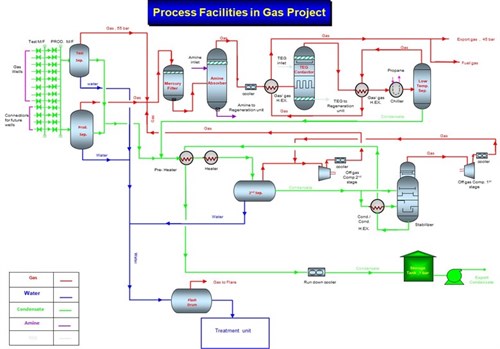

Central process facilities (CPF). FIG. 1 shows the major processing units that make up the CPF, while FIG. 2 details the gas and condensate process facilities in the gas project. The gas project consists of eight wells, a gathering system and CPF, where the production stream from the various fields will be separated into condensate and dew-pointed gas products for export. The gas processing involves inlet facilities for liquid separation, a mercury removal unit, a carbon dioxide (CO2) removal unit, a dehydration unit, and a hydrocarbon dew-pointing unit to meet export gas specifications.

Noaman Fig 1

FIG. 1. Schematic of the CPF process units.


Noaman Fig 2

FIG. 2 Process facilities in the gas project.

The condensate separated from the gas in the inlet facilities is stabilized to meet the Reid vapor pressure (RVP) specification for export condensate. The gas will be exported via an export gas pipeline and treated in a dedicated liquefied petroleum gas (LPG) extraction facility to commercial specifications required for end user consumption. The condensate will be exported via an export pipeline to the oil terminal.

Mercury has been detected up to 70 ng/Sm3 in some well samples. Well samples are reported to not contain elemental sulfur, wax and paraffin. Also, the hydrogen sulfide (H2S) content of the wells is zero.

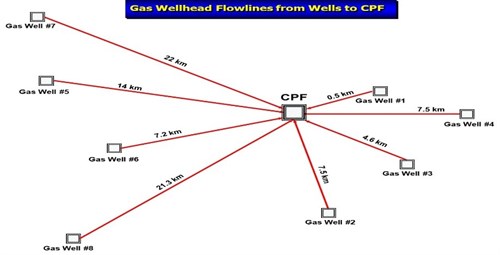

Gas wellhead flowlines. Eight producing wells are initially considered for the gas project. FIG. 3 details the wells and the length for each wellhead flowline. A wellhead pressure of 267 bara, wellhead temperature of 50°C and flowline pressure of 56 bar at the design flowrate of 425,000 m3/d (15 MMft3/d) are used. All eight gas wells have the same design flowrate of 425,000 m3/d. A range of compositions of different condensate gas ratios can be delivered by each gas well, depending on the layer being produced.

Noaman Fig 3
FIG. 3. Gas wellhead flowlines from wells to CPF.

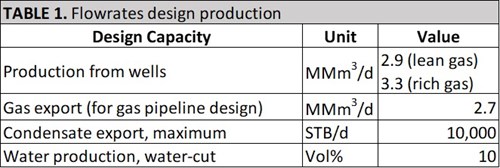

Gas project design capacities. The gas project is designed to produce 2.7 MMm3/d of export gas and 10,000 STB[MR1] /d of export condensate. TABLE 1 displays the design flowrates for the process facilities of the gas project.

Table 1 Noaman

Export gas specifications. The export gas specifications for gas are: the water dew point is –12°C; the hydrocarbon dew point at 35 barg is 10°C; the CO2 content is < 2% mole; and the pressure of the export gas is 44 barg.

Export condensate specifications. The condensate export specification requires the removal of water and light hydrocarbons to meet the basic sediment and water (BS&W) (< 1% v/v) and RVP (< 0.8 bar and 37.8°C) specifications.

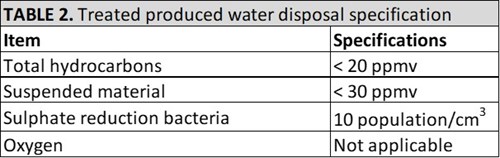

Produced water disposal specification. The produced water volumes increase over the lifetime of the gas well and may reach an assumed maximum of 10% by volume of total liquids for any one gas well. This is based on recommendations received from the reservoir department. The CPF should be designed to handle up to 10% water cut based on fluids from all gas wells. Produced water should be adequately treated before disposal. TABLE 2 illustrates the required treated water disposal specifications for the gas project. The design capacity of the produced water disposal equipment should be 240 m3/d.

Table 2 Noaman

Produced water disposal options in the gas project: Evaporation ponds. Evaporation ponds are more manageable and suitable to local environment conditions that facilitate evaporation (temperature, wind, availability of land). These ponds must be built and managed according to the requirements of the World Bank environmental, health and safety guidelines for onshore oil and gas development.29

The treated produced water will be routed to an evaporation pond. Due to potential residual contamination by inorganic mercury and miscible liquids (e.g., glycol, amine), lining of the evaporation ponds will be required to prevent water seepage into the ground. The evaporation ponds are to be suitably fenced and netted to prevent wildlife, especially birds, entering the ponds.30,31

The use of a synthetic barrier (e.g., polyethylene, polypropylene) prevents water seepage into the ground and ensures contaminants are retained above ground if the pond is completely evaporated and “dry.” Ponds will be segregated into two sections to enable the isolation of one for maintenance while the other section remains in operation.32

It is recognized, however, that any heavy hydrocarbon residues will become more concentrated in the ponds as water evaporates. Accumulated hydrocarbon residues must be periodically removed from the ponds—no lasting environmental impact will occur due to the presence of hydrocarbon residues.33

It is proposed that the residue after partial evaporation of the produced water can be transported by trucks to the neighbor facilities. Other possible options for disposal of the residue include long-term storage at the site, landfill in a fully lined cell or incineration.

Produced water injection: The use of a water disposal well. The best available technology for produced water disposal is usually considered to require downhole injection. However, it can be uneconomical to drill a well for water disposal for the low initial rates.34

Significant geotechnical investigation is required to determine the depth to which any such well, or wells, must be drilled to avoid risk of contamination of any aquifers in the region.

Downhole injection can also cause groundwater contamination through leaks and cracks in injection well casing, and improperly plugged abandoned oil and gas wells within the radius of influence created by injection wells, and natural or induced fractures, which connect the injection zone with adjacent water zones.

In addition, the compatibility of water in the disposal well formation and the water being injected from the process must be assessed for any potential scaling issues and similar problems.35

Produced water reinjection to production well. Reinjection of produced water into a producing reservoir may be required for reservoir management and has the added advantage of environmental pollution control.36

Reinjection into a depleted well may be considered later in field life, subject to the flowline design conditions and metallurgy being suitable to transport the produced water to the wellsite at an adequate pressure.37

By inspection, pumping of the produced water at high pressure into the ground will use significantly more power than the evaporation ponds option. It represents more risk to the ground water, as mentioned above, and can be costly. It should, however, be noted that if any traces of mercury are found in the well samples at a future date, then this approach should be reassessed.38,39

This method is feasible for higher water cuts or water breakthrough conditions. Based on the cost information available, reinjection into a dedicated water disposal well at the gas project area is a more economical option over a 25-yr period than trucking water to the existing neighbor facilities at water disposal rates greater than 76 m3/d.

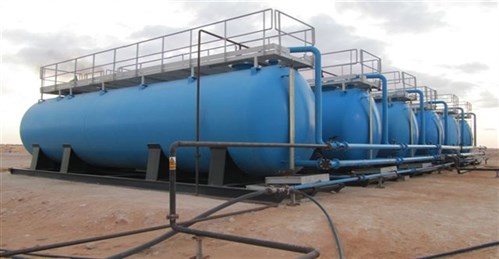

Trucking water to existing neighbor facilities—Disposal facilities at existing facilities. At the existing neighbor facilities for the gas project, produced water is drained from the skimmer tank into one of six 100-m3 storage tanks. Here, water is treated prior to being pumped to the saltwater disposal well or evaporation ponds. FIG. 4 shows the produced water settlement and storage tanks in existing neighbor facilities.

Noaman Fig 4
FIG. 4. Produced water settlement and storage tanks.

However, the existing neighbor CPF struggles to deal with the current levels of water [up to 3,000 bpd (~20 m3/hr)], which will increase as the reservoir depletes.

The neighbor CPF sometimes pumps water to the disposal well 24 hr/d and tankers regularly produce water to evaporation pits at the satellite wells, which have been left over from the drilling campaign. Therefore, the capability of the neighbor facilities to handle gas project produced water must be confirmed before this can be adopted as the basis of design.

Trucking water from the gas project. It was envisaged that if required in the early years, produced water from the CPF in the gas project could be taken by tanker and disposed of by injection down the saltwater disposal well at the neighbor CPF.

It is anticipated that the produced water will be drained to the evaporation ponds to take maximum advantage of evaporation as the lowest cost disposal method. If, however, conditions do not allow total evaporation, then removal of the excess water to the neighbor facilities may be necessary.

A hard stand is required at the evaporation ponds at the CPF gas project for a truck to park while water is pumped out of the ponds into the tanker. Additional investment required for this low-cost method of disposal is assumed negligible.

Each truck is assumed to carry up to 20 m3 of water. A third party contracted to transport water between the gas project and neighbor facilities will operate the trucks. One truck movement per hour during daylight hours should be sufficient to dispose of the maximum design quantity of water produced at the CPF of the gas project.

Based on the cost information available, trucking water to the neighbor facilities is the most economical option over a 25-yr period at water disposal rates of less than 17 m3/d. It is also more advantageous than reinjection into a well at the CPF of the gas project at water disposal rates of less than 76 m3/d.

Compatibility with neighbor existing facilities’ formation water. The suitability of injection at neighbor existing facilities as a means of disposal is dependent on the compatibility of the water from the gas project with that produced at neighbor existing facilities.

In early stages of production, the water rates at the CPF of the gas project are expected to be low (i.e., condensing water only) and discharge to an evaporation pond after processing is deemed an acceptable means of disposal. As volumes increase, further tests on compatibility with the neighbor existing facilities can be made and a decision can be made on longer term disposal methods based on improved information.

HSE issues. Regular truck movements between the gas project area and neighbor facilities will greatly increase the risk of accident, as road transportation is a major cause of personal injury and death at any production facility. The effect of regular trucking of water to the neighbor facilities on the gas project risk profile should be reviewed if this is envisaged as the main method of water disposal from the gas project. If, however, this is viewed as a backup to evaporation ponds only when weather conditions do not favor total disposal by evaporation, then the marginal increase in risk may be considered acceptable.

Pipeline to neighbor existing facilities. As an alternative to the trucking of water, construction of a water pipeline from the gas project to the neighbor existing facilities may be considered. Preliminary costing suggests that using a pipeline to the neighbor existing facilities will be more cost-effective than trucking at water rates greater than 173 m3/d, as well as reducing the HSE risk from reduced transport requirements. One of two 100% electric motor drive pumps (one in service; one standing by) will pump water from a holding tank.

A non-metallic pipeline material may be considered [e.g., fiberglass reinforced plastics (FRP) or high-density polyethylene (HDPE)] to avoid corrosion issues. Pipeline length is approximately 60 km with a diameter of 4 in. calculated based on API 14 E standards with a design pressure of ~30 barg. Pigging of the pipeline will not be required.

The neighbor existing facilities are identical to the case where water is trucked between sites. The compatibility of formation water from different sources is an issue also, regardless of whether the water from the CPF of the gas project is trucked or delivered via pipeline. GP

Part 2 of this article will appear in the February issue of Gas Processing & LNG.
